The advantages of brushless micro motor compared with conventional carbon brushed micro motor

1.    No armatures, field coil, carbon brushes and no maintenance-High efficiency

2.    Virtually no loss of rated power during full load grinding

3.    High efficient output, energy saving

4.    Continuously constant torque

5.    More simpler and stronger construction of the motor

6.    Motor consist of stator and rotor, rotor is squirrel cage and stator has winding which    is stationary so no rotating winding in the motor

7.    Accelerated start, low starting current- extending the service life

8.    Strong protection function-overheating, over current, low voltage protection

All in all there is a strong trend in the whole world that brushless micro motor will replace carbon brushed micro motor in due time.

Features:

With human engineering design, comfortable to operate

Forward & backward rotating，on & off switch, hand & foot control

Special material and workmanship, no noise, no vibration and running more smoothly

Much bigger power, much stronger torque

Precise speed control system, precise speed adjustment

Touch panel, more elegant, user friendly design

With memory and fault warning function, intelligent control system

Automatic protection against over current, overheating, overloading

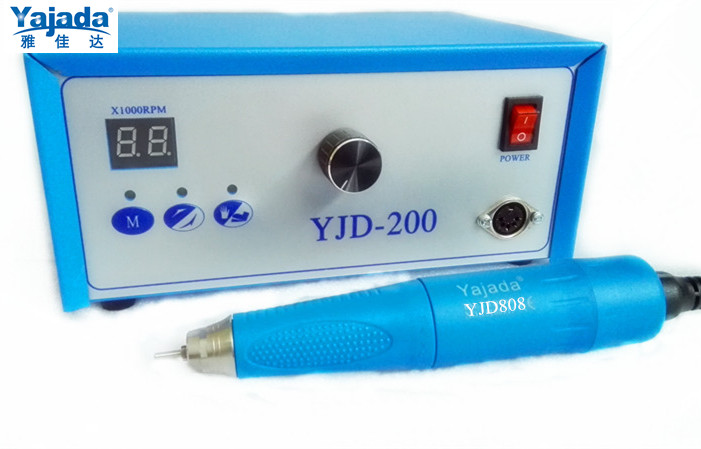

Control unit:
Model No.,: YJD-200
Input: AC110/220-240, 50/60Hz
Power: 230W
Weight: 3.2Kg
Dimension: 20× 15.5× 9.5cm

Hand piece:

Model No.,YJD808
Max Speed: 50, 000rpm
Max Torque: 7.0N. cm
Weight: 240g
Dimension: ∮ 26× 155mm

Application area:

Widely used in precise grinding, carving and polishing for false teeth, precious stone, jewelry, nails, mold ,handicrafts and so on.
